Electric extend + retract
Set up and pack down the shade area from the powered control system.
Carbonogy / Outdoor living
Carbonogy Electric Awning
$2,000.00Sale
Create a comfortable outdoor living space in seconds with a powered roll-out awning built for straightforward 12V operation, adjustable pitch and compact travel storage.
In stock — ready to ship
↗Tracked shippingFollow your delivery
◇Secure checkoutProtected payment
◎RV parts supportHelp when you need it
Product details

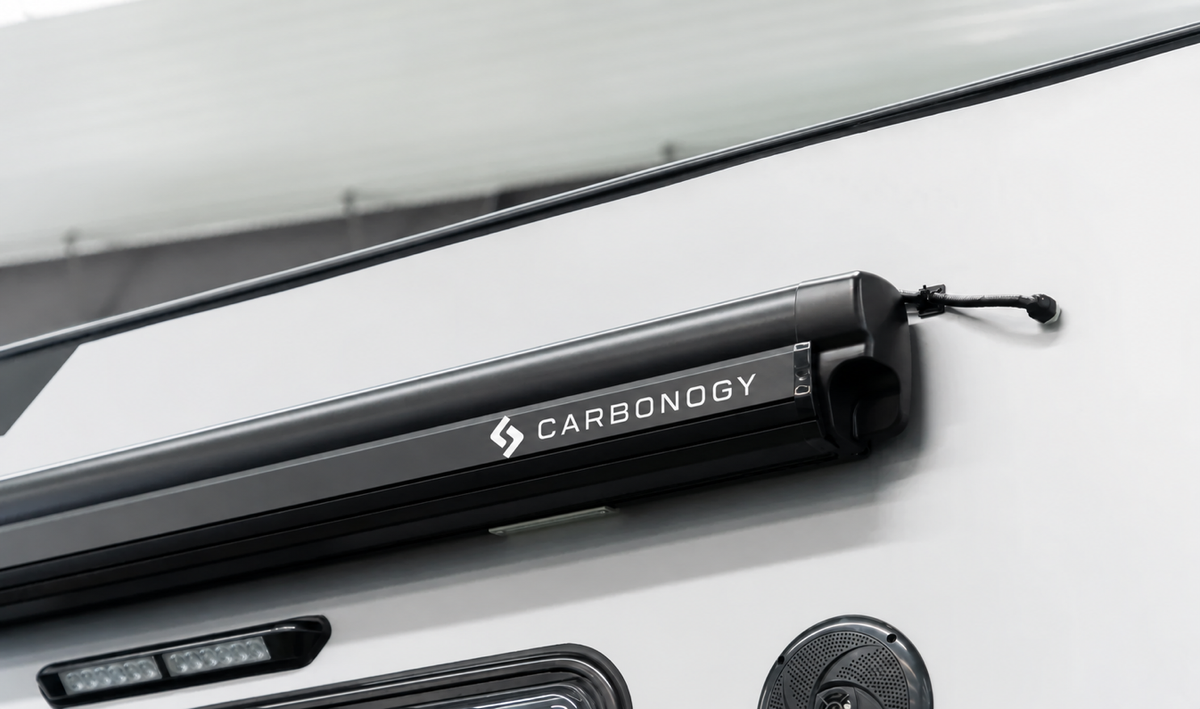

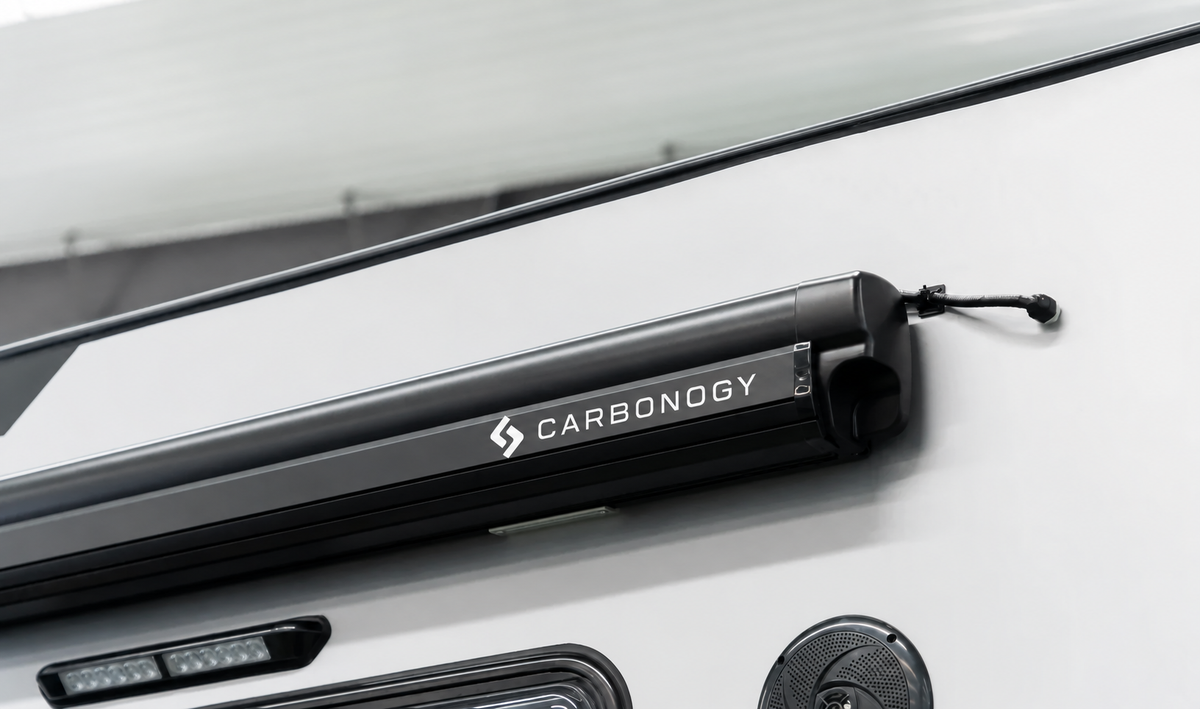

Motorized roll-out awning that extends and retracts at the touch of a button, giving you shade and weather cover at camp in seconds. The black case carries Carbonogy branding and the arms and fabric are built for off-road touring.
Replace it when wind has bent an arm, the motor has failed, or the fabric has torn or delaminated after years of sun.
- Electric push-button extend and retract
- Available in two lengths: 11.48 ft and 13.12 ft
- Fits Black Series HQ12, HQ15, HQ17, HQ19, HQ21 and HQ22T campers
Choosing a length: measure your existing awning case end to end and pick the matching size, 11.48 ft or 13.12 ft. Not sure which you have? Contact us with your camper model and build year and we will confirm.
Installation and care: installation is a two-person job. Mount into the structural rail or backing used by the original awning and seal every fastener penetration with marine-grade sealant. Retract the awning whenever the wind picks up or you leave camp, let the fabric dry before rolling it away, and keep the arm pivots clean and lightly lubricated.
Fit & installation
Measure the available wall length, mounting height, bracket positions, structural backing and door clearance before ordering. All brackets must be aligned on one plane. Professional installation is recommended.
Shipping & returns
Shipping times and return eligibility follow current store policies. Keep the product uninstalled until fitment has been confirmed.
Built for life outside
More shade. More room to unwind.
Fast powered deployment turns the space beside your RV into a sheltered outdoor room, then stores everything in a clean, travel-ready profile.
12V DC operation
The motor system is designed around the standard 12V electrical supply used in RVs.
Full-length shade
Choose the awning length that matches the available wall space and mounting structure.
Adjustable canopy angle
Arm-base adjustment helps create drainage toward one side during light rain.
Support-leg system
Deploy the legs and ground stakes when site conditions allow for added stability.
Compact closed profile
The roller, fabric and arms retract into a clean housing for travel and storage.
Technical details
Powered to deploy. Built to travel.
Motor figures are based on the 12V configuration in the supplied manual. Confirm the selected length, projection, control type and included parts before ordering.
Electrical12V DC
Motor power64W
Rated current5.3A
Rated torque10 N·m
Length options3.5 m / 4.0 m
OperationExtend + retract
Canopy pitchAdjustable
SKU—
Support / FAQ
Good to know before you install.
How do I choose the correct awning length?
Measure the available RV wall length, existing awning, bracket locations and door clearance. Confirm adequate structural backing. Do not select the size only by RV model name.
Can the canopy angle be adjusted?
Yes. The supplied manual shows pitch adjustment at the left and right arm bases. Small adjustments can create a low side for rainwater drainage.
Can I leave the awning open in rain or wind?
For light rain, create a clear low side so water runs off and never pools on the fabric. Retract the awning during strong wind, severe weather, before travel or whenever the RV is unattended.
Does installation require professional help?
Professional installation is recommended. The mounting brackets must attach to adequate structure, align on one plane, seal against water intrusion and connect to the correct 12V supply.
