Dometic Penguin II Complete Analysis: Why It's the Top Choice for Low-Profile RV Air Conditioning



Key Features & Ideal Applications

Low-Profile Design & Aerodynamic Advantages

The Dometic Penguin's ultra-low 9.5" profile represents a breakthrough in RV air conditioning engineering. This compact design delivers significant advantages for modern RV travel:

Bridge & Tunnel Clearance: The reduced height helps maintain lower overall RV profiles, crucial for navigating low-clearance bridges, parking structures, and drive-throughs that standard 13"+ units might not clear.

Wind Resistance & Fuel Economy: Independent testing shows the Penguin's streamlined design reduces wind drag by up to 15% compared to traditional box-style units. This translates to measurable fuel savings during highway travel and improved handling in crosswinds.

Aesthetic Integration: The sleek, curved profile blends seamlessly with modern RV rooflines, eliminating the "boxy" appearance that can detract from your RV's visual appeal.

Cooling Capacity Range & Coverage Areas

13.5K BTU Model: Effectively cools 250-350 square feet in moderate climates (70-85°F ambient). Ideal for smaller travel trailers, truck campers, and Class B motorhomes where weight and power consumption are critical factors.

15K BTU Model: Handles 350-450 square feet in challenging conditions (85-100°F+). Perfect for larger Class A and Class C motorhomes, fifth wheels, and extended desert/southern travel where maximum cooling power is essential.

Climate Zone Considerations: The Penguin excels in varied conditions due to its efficient refrigeration cycle and variable-speed compressor technology, maintaining consistent performance from mountain elevations to desert heat.

Noise & Vibration Control Performance

Whisper-Quiet Operation: Advanced compressor mounting and internal sound dampening reduce operational noise to as low as 58 dB – quieter than most residential central air systems and significantly more peaceful than traditional RV units.

Vibration Isolation: The Penguin's integrated mounting system includes vibration-dampening elements that prevent road noise transmission and reduce wear on both the unit and your RV's roof structure.

Sleep-Friendly Features: Many users report being able to sleep comfortably with the Penguin running on low speed – a major quality-of-life improvement for full-time RVers and extended-stay campers.

---

Model Versions & Configuration Comparison

Cooling Capacity Selection: 13.5K vs 15K BTU

13.5K BTU Advantages:

• Lower power consumption (typically 11-13 amps vs 13-15 amps)
• Reduced generator requirements (2000W generator sufficient)
• Lighter weight (approximately 10-15 lbs less)
• Better for 30-amp electrical systems
• More efficient in moderate temperature conditions

15K BTU Advantages:

• Superior performance in extreme heat (95°F+ ambient)
• Faster initial cooldown in large spaces
• Better humidity removal in tropical climates
• Recommended for full-time living in southern regions
• Essential for larger RVs (35+ feet) with high internal heat loads

Heating Solutions: Heat Strip vs Heat Pump Technology

Electric Heat Strip Configuration:

• Power Requirements: 1500W (13.5K models) to 2000W (15K models)
• Best For: Mild winter conditions (35-55°F), supplemental heating, areas with reliable electrical hookups
• Advantages: Simple, reliable operation; lower initial cost; works down to freezing temperatures
• Limitations: High electrical consumption; less efficient than heat pumps; requires significant generator capacity

Heat Pump Technology:

• Efficiency: Up to 300% more efficient than resistance heating in moderate conditions
• Operating Range: Effective down to approximately 40°F ambient temperature
• Best For: Extended shoulder-season camping, energy-conscious users, areas with expensive electricity
• Advantages: Dramatically lower operational costs; environmentally friendly; excellent for mild winter climates
• Considerations: Higher initial investment; reduced efficiency below 40°F; may require backup heating for extreme cold

Control System Options

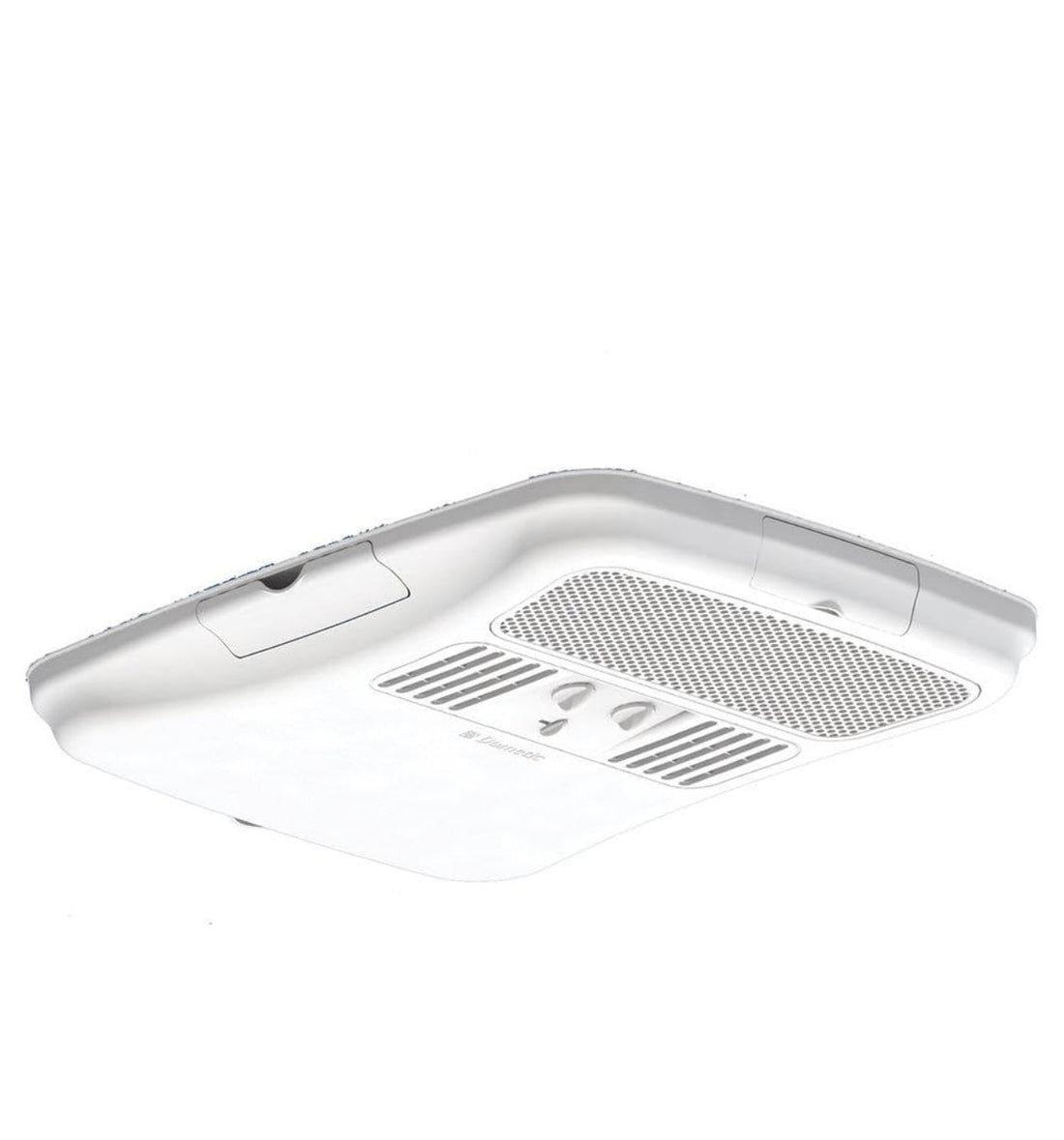

Standard Rotary Controls:

• Simple, reliable knob-based operation mounted on interior ceiling unit
• Three cooling speeds plus heating activation
• Best for: Basic installations, budget-conscious upgrades, users preferring simple operation

Digital Wall Thermostat Compatibility:

• Precise temperature control with programmable scheduling
• Remote operation from convenient wall locations
• Advanced models offer smart home integration and smartphone control
• Multi-Zone Capability: Some configurations support independent control of multiple units or zones

Smart Integration Features:

• WiFi connectivity for remote monitoring and control
• Integration with RV automation systems
• Energy usage tracking and optimization suggestions
• Diagnostic reporting for preventive maintenance

---

Compatibility & Replacement Assessment

Standard Mounting Requirements

Roof Opening Specifications: The Penguin series utilizes the industry-standard 14" x 14" square opening, ensuring compatibility with most existing RV installations. However, always verify your current opening dimensions before ordering.

Roof Thickness Accommodation: Designed for roof thickness ranging from 2.5" to 4", with adjustable mounting hardware to ensure proper fit across different RV construction methods and insulation thicknesses.

Electrical Requirements:

• 13.5K Models: 30-amp service minimum, though 50-amp recommended for heat strip operation
• 15K Models: 50-amp service strongly recommended, especially with heat pump or strip heating
• Generator Compatibility: Minimum 3000W generator for full-load operation with heating

Ducted vs Non-Ducted System Matching

Non-Ducted (Direct) Applications:

• Air flows directly from the unit into the living space
• Simpler installation with fewer components
• Ideal For: Smaller RVs, open floor plans, budget-conscious installations
• Penguin Advantage: Superior airflow distribution even without ducting

Ducted System Integration:

• Air distributed through flexible ducts to multiple vents
• Better For: Larger RVs, multiple rooms, more even temperature distribution
• Requirements: Compatible Air Distribution Box (ADB), properly sized ductwork, sealed connections
• Penguin Benefit: Higher static pressure capability handles ducted systems efficiently

When to Upgrade Supporting Components

Air Distribution Box (ADB) Replacement: If your current interior unit is more than 5 years old, upgrading to a compatible ADB ensures optimal airflow and noise performance with your new Penguin.

Thermostat System Updates: Old mechanical thermostats may not properly control modern heat pump systems. Digital thermostat upgrades unlock the full efficiency potential of Penguin heat pump models.

Electrical System Assessment: Older RVs may need wiring upgrades to safely handle the Penguin's power requirements, especially with heating elements engaged.

---

Installation Process: Old Unit Removal to New Unit Commissioning

Pre-Installation Preparation & Old Unit Removal

Power Isolation & Safety:

• Disconnect power at the main breaker and verify with a tester
• Allow the old unit to cool completely if recently operated
• Photograph all electrical connections before disconnection

Interior Component Removal:

• Remove the ceiling air distribution box, noting filter and control configurations
• Disconnect all wiring harnesses, labeling each connection clearly
• Remove any ducting connections if present in your system

Exterior Unit Extraction:

• Remove mounting bolts in diagonal sequence to prevent binding
• Carefully lift the old unit, inspecting mounting hardware and gaskets
• Clean the roof opening thoroughly, removing all old sealant and debris

New Penguin Installation Sequence

Gasket & Sealing Preparation:

• Install the new mounting gasket according to manufacturer specifications
• Apply a thin bead of appropriate RV sealant to ensure weatherproof installation
• Ensure the roof surface is clean, dry, and free from any irregularities

Unit Positioning & Mounting:

• Carefully position the new Penguin over the opening, aligning mounting holes precisely
• Install mounting bolts hand-tight initially, then torque to specification in a diagonal pattern
• Critical: Follow specified torque values (typically 25-30 ft-lbs) to avoid over-compression of gaskets

Electrical Connections & Testing:

• Connect power wiring according to the provided diagram and your reference photos
• Install any new thermostat wiring if upgrading control systems
• Restore power and perform initial system testing: cooling, heating, and all fan speeds

Weatherproofing & Performance Optimization

Seal Inspection & Enhancement:

• Verify all perimeter sealing is complete and properly compressed
• Check for any gaps or irregularities that could allow water infiltration
• Apply additional sealant only where specified – over-sealing can cause problems

Vibration & Noise Minimization:

• Ensure all mounting hardware is properly torqued but not over-tightened
• Install vibration dampening pads if recommended for your specific installation
• Test operation at all speeds to verify quiet, smooth performance

Performance Verification:

• Monitor amp draw during startup and steady-state operation
• Verify proper airflow direction and volume from all vents
• Test heating operation (if equipped) and confirm proper cycling

---

Operation & Maintenance Best Practices

Routine Maintenance Schedule

Monthly Filter Service: Clean or replace return air filters to maintain optimal airflow and protect the evaporator coil. Clogged filters are the leading cause of reduced performance and increased energy consumption.

Quarterly Inspection Points:

• Check condensate drain operation and clear any blockages
• Inspect interior and exterior components for any loose hardware
• Verify proper operation of all controls and confirm quiet operation
• Clean exterior fins and remove any accumulated debris

Annual Deep Service:

• Professional inspection of refrigeration system pressures and operation
• Comprehensive electrical connection inspection and cleaning
• Lubrication of moving parts according to manufacturer specifications
• Complete performance evaluation and efficiency testing

Extended Travel & High-Temperature Operation

Desert Travel Preparation:

• Pre-cool your RV before the heat of the day when possible
• Use window coverings and awnings to reduce solar heat gain
• Park strategically to minimize afternoon sun exposure on the roof unit
• Monitor amp draw in extreme conditions – high ambient temperatures increase power consumption

High-Altitude Considerations:

• Performance decreases approximately 3% per 1000 feet of elevation
• Allow longer cooldown times at altitudes above 5000 feet
• Monitor for icing conditions in high-altitude, high-humidity environments

Troubleshooting Common Issues

Insufficient Cooling Performance:

1. First Check: Filter condition and airflow restrictions
2. Second Check: Thermostat settings and sensor location
3. Third Check: Refrigeration system pressures (requires professional service)
4. Environmental: Excessive heat load, poor insulation, or unrealistic expectations for ambient conditions

Ice Formation on Evaporator:

• Usually indicates restricted airflow (dirty filter) or low refrigerant
• Can also result from extremely high humidity conditions
• Immediate Action: Turn off cooling, switch to fan-only mode until ice melts, then investigate cause

Electrical Issues & Circuit Protection:

• Frequent Breaker Tripping: May indicate electrical system problems, low voltage, or unit malfunction
• High Amp Draw: Could signal compressor issues, dirty coils, or electrical problems
• Inconsistent Operation: Often related to thermostat, wiring, or control system problems

---

Upgrade Packages & Accessory Recommendations

Essential Upgrade Components

Compatible Air Distribution Box (ADB):

• Why Upgrade: New ADB ensures optimal airflow matching and noise reduction
• Features to Consider: Improved filter access, better air distribution, quieter operation
• Cost: $200-400 depending on features and control integration

Digital Thermostat Systems:

• Basic Digital: Precise temperature control, programmable scheduling ($150-250)
• Smart Thermostats: WiFi connectivity, smartphone control, energy monitoring ($300-500)
• Multi-Zone Systems: Independent control of multiple units or zones ($400-800)

Installation & Weatherproofing Kit:

• Professional-grade mounting gaskets and hardware
• High-quality RV sealants and weatherproofing materials
• Vibration dampening components for optimal performance
• Bundle Price: $75-150 vs $200+ if purchased separately

Performance Enhancement Accessories

Roof Protection & Efficiency:

• Air Conditioner Covers: Protect during storage and improve aerodynamics during travel ($100-200)
• Roof Vent Shades: Reduce solar heat gain and improve efficiency ($50-100 per vent)
• Reflective Roof Coatings: Professional application can reduce roof temperature by 20-30°F

Power Management Solutions:

• Soft Start Devices: Reduce startup amp draw, enable operation on smaller generators ($300-500)
• Surge Protectors: Protect against electrical damage from power quality issues ($200-600)
• Energy Management Systems: Automatically manage electrical loads to prevent overloads ($500-1500)

Service & Warranty Packages

Professional Installation Service:

• Complete old unit removal and new Penguin installation
• Electrical system inspection and upgrades if needed
• 2-Year Installation Warranty covering all installation-related issues
• Cost: $500-800 depending on complexity and location

Extended Warranty Options:

• 3-Year Comprehensive: Covers all components including compressor ($300-500)
• 5-Year Premium: Includes annual maintenance and priority service ($600-1000)
• Trade-In Credit: Up to $200 credit for qualifying old units in working condition

Complete Upgrade Bundles

🎯 Essential Upgrade Package: Penguin Unit + ADB + Installation Kit - Save 20% 🎯 Comfort Plus Package: Penguin + Digital Thermostat + Professional Installation - Save 25%
🎯 Premium Experience Package: Penguin + Smart Controls + All Accessories + 5-Year Warranty - Save 30%

Design My Custom Package → | Get Installation Quote →

---

Frequently Asked Questions

Should I choose the 13.5K or 15K BTU model?

Choose 13.5K if: Your RV is under 30 feet, you primarily camp in moderate climates, you have 30-amp electrical service, or weight/power consumption are priorities.

Choose 15K if: Your RV is over 30 feet, you travel in hot climates (Southwest USA, Southern states), you have 50-amp service, or maximum cooling power is essential for comfort.

Still Unsure? Our sizing calculator considers your specific RV dimensions, typical travel patterns, and electrical capacity to recommend the optimal model.

What's the real difference between Heat Strip and Heat Pump?

Heat Strip (Resistance Heating):

• Pros: Works in all temperatures, simple operation, lower upfront cost
• Cons: High energy consumption (1500-2000W), expensive to operate, less environmentally friendly
• Best For: Occasional cold weather, areas with cheap electricity, backup heating only

Heat Pump:

• Pros: 2-3x more efficient, dramatically lower operating costs, works well down to 40°F
• Cons: Higher initial cost, reduced efficiency in extreme cold, more complex system
• Best For: Extended shoulder-season camping, areas with expensive electricity, environmentally conscious users

How do I confirm my RV's roof can support the Penguin?

Most RVs built after 1990 can support any rooftop AC unit without issues. Key considerations:

• Weight: Penguin units weigh 85-95 lbs (similar to most rooftop ACs)
• Mounting Points: Standard 14" x 14" opening with proper framing
• Electrical: Verify your service capacity matches the unit requirements

Professional Assessment: If your RV is older or has structural concerns, a professional inspection ensures safe installation.

Can I directly replace my old brand/model with a Penguin?

Most Likely Yes – The Penguin uses standard mounting dimensions and electrical connections. However:

• Confirm Opening Size: Measure your current 14" x 14" opening
• Electrical Compatibility: Verify amp capacity and control compatibility
• ADB Consideration: Older interior units may benefit from concurrent upgrade

Free Compatibility Check: Send us photos of your current installation and nameplate information for definitive confirmation.

What about shipping, installation, and warranty support?

Shipping Protection:

• All units ship with comprehensive damage protection
• Professional packaging designed for fragile refrigeration components
• Insurance coverage for full replacement value

Installation Support:

• Detailed installation manuals with step-by-step photos
• Technical support hotline for installation questions
• Preferred Installer Network: Certified technicians in most major RV markets

Warranty Coverage:

• 2-Year Comprehensive Warranty on all components
• 5-Year Sealed System Warranty on compressor and refrigeration components
• Nationwide Service Network for warranty repairs and maintenance
