1. Product & System Overview

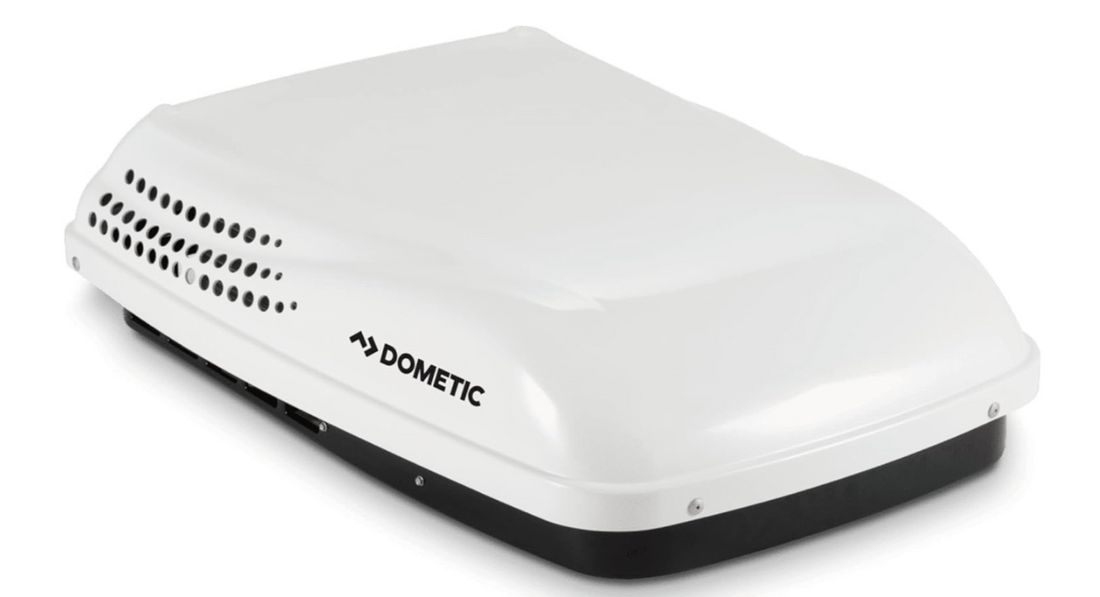

1.1 Dometic Penguin/Penguin II Series

The Dometic Penguin series features sleek, aerodynamic casings with high-capacity cooling systems designed for seamless roof integration. These low-profile units offer superior aerodynamic efficiency compared to traditional RV air conditioners, reducing wind resistance and noise during travel.

Key Features:

  • Low external profile for improved aerodynamics
  • 14 x 14-inch vent opening compatibility
  • Available in 11,000, 13,500, and 15,000 BTU configurations
  • Heat pump models (HC series) available for year-round use

1.2 Air Distribution Box (ADB) Function

The Air Distribution Box (ADB) serves as a vital component in an RV's air conditioning system, effectively distributing conditioned air throughout the living space, mounting to the ceiling directly under the roof top air conditioner providing a divider for the interior's intake and discharge.

Primary Functions:

  • Even air distribution throughout RV interior
  • Houses control mechanisms more complex than most other brands
  • Provides return air pathway
  • Accommodates manual or thermostat controls

1.3 Non-Ducted vs Ducted Applications

The Dometic Air Distribution Box is designed for non-ducted applications, perfect for distributing cool A/C to your entire mobile living space. Most Penguin II installations utilize non-ducted ADB systems for simplicity and cost-effectiveness.

Non-Ducted Advantages:

  • Simpler installation
  • Lower cost
  • Direct air distribution
  • Easier maintenance access

1.4 Key Specifications Example

13.5k BTU Penguin II System:

  • Cooling Capacity: 13,500 BTU/hr
  • Power Consumption: ~1,250W (cooling)
  • ADB Dimensions: 26.77" x 23.03" x 5.12"
  • ADB Weight: 12.17 lbs
  • Electrical: 115-120VAC, 60Hz

2. Global Market Overview

2.1 RV Air Conditioner Market Size

The global Air Conditioner For RV Market size was valued at USD 1.67 billion in 2024 and is expected to expand at a compound annual growth rate (CAGR) of 5.16% from 2023 to 2032, reaching USD 2.5 billion by 2032. Alternative sources suggest varying estimates, with another report valuing the market at USD 609 million in 2024, projected to grow to USD 862 million by 2032 at a CAGR of 5.2%.

Market Variance Note: Different research methodologies and market definitions account for the significant variance in market size estimates.

2.2 Dometic Market Position

Leading players in the market include Dometic, Thermo King, Eberspächer Group, Webasto Group, Haier, Hisense, Gree, and Midea. Dometic Group, headquartered in Sweden, maintains a strong position in the RV market with comprehensive product portfolios across multiple regions.

2.3 Regional Market Characteristics

North America is the largest market with about 55% share, followed by Europe at 33% and Asia-Pacific at 10%. Top-mounted units represent 71% of the market segment.

Regional Preferences:

  • North America: High RV penetration, emphasis on non-ducted ADB systems, focus on low noise and high airflow
  • Europe: Compact vehicle integration, energy efficiency priority, low-profile requirements
  • Asia-Pacific: Growing camping/RV rental markets, increasing aftermarket upgrades

2.4 Market Drivers & Constraints

Growth Drivers:

  • Increased outdoor recreation and RV travel demand
  • Vehicle electrical system improvements
  • Longer travel durations and need for comfort in changing climates drive effective cooling solutions

Market Constraints:

  • Raw material costs and currency fluctuations
  • Regulatory changes in energy efficiency standards
  • Refrigerant transition requirements (R410A to newer alternatives)

3. Selection & Compatibility Checklist

3.1 Vehicle Compatibility

  • Roof Opening: Standard 14 x 14-inch vent openings
  • Structural Support: Verify roof load capacity for combined unit weight
  • Clearance: Ensure adequate overhead clearance for ADB installation

3.2 Duct Configuration Decision

Non-Ducted (Most Common):

  • Universal fit AC unit for non-ducted applications with 6-prong standard harness plug connector
  • Direct ceiling-mounted air distribution
  • Compatible with Penguin II models 650015 & 650016

Ducted Systems:

  • Custom ductwork required
  • More complex installation
  • Better air distribution in larger RVs

3.3 BTU Capacity Matching

Capacity Guidelines by RV Size:

  • 11,000 BTU: RVs up to 24 feet
  • 13,500 BTU: RVs 24-30 feet
  • 15,000 BTU: RVs 30+ feet or poor insulation

3.4 Control System Options

Manual Ceiling Controls:

  • Available for Penguin II models with manual ceiling controls
  • Rotary switches mounted on ADB
  • Basic temperature and fan speed control

Wall Thermostat Compatibility:

  • ADB models available for use with wall thermostat systems
  • Precise temperature control
  • Remote operation capability
  • Requires compatible wiring harness

3.5 Electrical Requirements

  • Power Supply: 115-120VAC, 60Hz
  • Startup Current: Verify generator or shore power capacity
  • Wiring: Standard 6-prong harness plug connector for most applications

3.6 Heat Pump Compatibility

For year-round use, consider Penguin II HC (Heat/Cool) models with compatible ADB systems that support heat strip integration.

4. Installation Guide (Professional Installation Recommended)

4.1 Tools & Materials Required

Essential Tools:

  • Drill with various bits
  • Jigsaw or reciprocating saw
  • Screwdriver set
  • Wire strippers and electrical tester
  • Sealant application tools
  • Safety equipment (ladder, gloves, eye protection)

Materials Needed:

  • Roof sealant (Dicor or equivalent)
  • Mounting hardware (included with units)
  • Electrical connectors
  • Additional wiring if required

4.2 Safety & Preparation

  1. Power Disconnect: Turn off all electrical power to existing AC system
  2. Structural Assessment: Verify roof structural integrity
  3. Weather Conditions: Install only in dry conditions
  4. Safety Setup: Secure ladder access and use proper fall protection

4.3 Roof Unit Installation

  1. Remove Existing Unit: Carefully disconnect wiring and remove old air conditioner
  2. Opening Preparation: Clean and inspect roof opening, modify if necessary for 14"x14" requirement
  3. Gasket Placement: Position new gasket according to manufacturer specifications
  4. Unit Positioning: Install unit in 14 x 14-inch vent opening ensuring proper alignment
  5. Secure Mounting: Fasten using provided hardware with appropriate torque specifications

4.4 Interior ADB Installation

  1. Location Marking: Position ADB directly below roof unit
  2. Ceiling Opening: Cut ceiling opening to match ADB dimensions
  3. Wiring Connection: Connect 6-prong standard harness plug connector
  4. Control Selection: Install either manual controls or wall thermostat system
  5. Secure Mounting: Attach ADB to ceiling structure with provided brackets

4.5 Electrical Connections

  1. Verify Compatibility: Ensure electrical specifications match RV system
  2. Control Wiring: Connect thermostat or manual control wiring per diagram
  3. Safety Testing: Test all connections with multimeter before power application
  4. Ground Verification: Confirm proper grounding of all components

4.6 Sealing & Weatherproofing

  1. Roof Sealant: Apply generous amounts around roof unit perimeter
  2. Penetration Sealing: Seal any additional roof penetrations
  3. Interior Finishing: Complete ceiling finishing around ADB
  4. Inspection: Check for proper seal integrity

4.7 System Testing

  1. Power Application: Restore electrical power gradually
  2. Function Testing: Test all modes (cool, fan, heat if applicable)
  3. Airflow Verification: Check air distribution from all ADB outlets
  4. Leak Detection: Inspect for refrigerant or air leaks
  5. Control Testing: Verify thermostat or manual control operation

5. Airflow & Noise Optimization

5.1 Air Distribution Adjustment

Deflector Positioning:

  • Adjust interior air deflectors for optimal distribution
  • Avoid direct airflow on occupants
  • Ensure return air pathway remains unobstructed

Grille Resistance Management:

  • Clean grilles regularly to minimize pressure drop
  • Consider aftermarket high-flow grilles for improved performance
  • Monitor filter condition impact on airflow

5.2 Noise Control Strategy

Measurement Points:

  • Interior: 3 feet from ADB center, ear level
  • Exterior: Ground level, 10 feet from RV
  • Target: <55 dB interior during normal operation

Noise Reduction Techniques:

  • Verify proper mounting to eliminate vibration
  • Use sound-dampening materials around ADB if necessary
  • Balance fan speed vs. noise levels for comfort

5.3 Maintenance Schedule

Monthly:

  • Clean return air filter
  • Inspect ADB grilles for obstruction
  • Check drain system operation

Seasonally:

  • Deep clean evaporator coils
  • Inspect ductwork connections
  • Test control system calibration

5.4 Common Issues & Solutions

Airflow Problems:

  • Uneven cooling: Check deflector positions and return air obstructions
  • Reduced airflow: Clean or replace filters, inspect ductwork
  • Excessive noise: Verify mounting security, check fan balance

Temperature Control Issues:

  • Inadequate cooling: Verify BTU capacity vs. space requirements
  • Poor humidity control: Check system sizing and ductwork integrity
  • Control response: Calibrate thermostat, check wiring connections

6. "Best Of" Recommendations

6.1 Best Low-Profile + Non-Ducted ADB Combination

Recommended Setup:

  • Dometic Penguin II 13.5k BTU (Model 650015/650016)
  • Dometic Air Distribution Box with wall thermostat compatibility (Art nr: 9105305719)
  • Price Range: $1,800-2,400 complete system
  • Best For: RVs prioritizing aerodynamics and sophisticated climate control

6.2 Best Budget Entry Combination

Recommended Setup:

  • Dometic Penguin 11k BTU base model
  • Universal ADB with manual ceiling controls
  • Price Range: $1,200-1,600 complete system
  • Best For: Cost-conscious users with basic cooling needs

6.3 Best Four-Season Combination

Recommended Setup:

  • Dometic Penguin II HC 13.5k BTU (Heat/Cool model)
  • Compatible ADB with heat strip capability
  • Wall thermostat with heat/cool switching
  • Price Range: $2,200-2,800 complete system
  • Best For: Year-round RV use in varying climates

Each recommendation includes:

  • Compatibility verification requirements
  • Installation complexity assessment
  • Performance expectations
  • Warranty considerations

7. Technical Glossary

Air Distribution Box (ADB): Ceiling-mounted component that distributes conditioned air throughout RV interior while providing separation between intake and discharge air

BTU/h: British Thermal Units per hour - cooling capacity measurement

Non-Ducted: Direct air distribution system without additional ductwork

Ducted: System utilizing additional ductwork for air distribution

R410A: Current standard refrigerant for most RV air conditioners

CSA Certification: Canadian Standards Association safety certification

CFM: Cubic Feet per Minute - airflow measurement

Startup Current: Initial electrical draw when compressor engages

Heat Pump: System capable of both heating and cooling operation

6-Prong Connector: Standard electrical connection for Dometic ADB systems

8. Market Data & Analysis

8.1 Methodology

Data Sources: Official manufacturer specifications, authorized dealer pricing, third-party market research from multiple agencies (collection period: 2024)

Geographic Coverage: North America, Europe, Asia-Pacific markets with emphasis on English-speaking regions

Validation: Cross-reference multiple sources for pricing and compatibility information

8.2 Regional Availability Matrix

Region Model Availability Price Range (USD) Common ADB Types Market Share
North America Full range $1,200-2,800 Non-ducted, Manual/Thermo 55%
Europe Limited models €1,100-2,400 Compact non-ducted 33%
Asia-Pacific Growing selection $1,400-3,000 Universal compatibility 10%

8.3 Performance Comparison Charts

BTU vs. Power Consumption:

  • 11k BTU: ~1,050W average
  • 13.5k BTU: ~1,250W average
  • 15k BTU: ~1,450W average

Noise vs. Airflow Performance:

  • Manual controls: 52-58 dB typical
  • Thermostat systems: 48-55 dB typical
  • High-efficiency models: 45-52 dB typical

9. Frequently Asked Questions

9.1 Can Penguin II and Brisk II ADBs be used interchangeably?

Answer: Limited interchangeability exists. Specific ADB models are designed for Penguin II models 650015 & 650016. Always verify part numbers and compatibility statements before substitution. Electrical connections and control interfaces may differ between product lines.

9.2 How do I choose between non-ducted and ducted systems?

Answer: Non-ducted applications are most common and suitable for typical RV layouts. Choose based on:

  • Non-ducted: Simpler installation, lower cost, adequate for most RVs
  • Ducted: Better air distribution in large RVs, more complex installation required

9.3 How do I match BTU capacity to my RV?

Answer: Consider RV length, insulation quality, and climate conditions:

  • Poor insulation or extreme climates: Increase capacity by 20-30%
  • Generator capacity: Ensure sufficient starting power (typically 3000W+ for 13.5k BTU)
  • Electrical system: Verify 30A or 50A service compatibility

9.4 Manual controls vs. wall thermostat - which to choose?

Answer:

  • Manual Controls: Basic ceiling-mounted rotary controls, lower cost, adequate for most users
  • Wall Thermostat: Precise temperature control, remote operation, requires compatible ADB model and additional wiring

9.5 Do heat pump models work in all climates?

Answer: Heat pump efficiency decreases significantly below 40°F (4°C). Supplementary resistance heating or alternative heating methods recommended for sustained cold weather use. HC models excel in moderate climates with occasional heating needs.

Conclusion

The Dometic Air Distribution Box system provides essential functionality for Penguin series roof air conditioners, with non-ducted configurations offering the best balance of performance, cost, and installation simplicity for most RV applications. Proper selection based on vehicle size, electrical capacity, and user preferences ensures optimal comfort and system longevity.

Key Takeaways:

  • Verify specific model compatibility before purchase
  • Consider total system cost including installation
  • Match BTU capacity to actual cooling load requirements
  • Professional installation recommended for electrical safety
  • Regular maintenance critical for sustained performance
Back to blog
