Dometic Air Distribution Box Selection & Installation Guide: Compatibility, Sizing & Installation Tips
Transform your RV air conditioning experience with the right Air Distribution Box. This comprehensive guide covers everything from compatibility checks to professional installation techniques.
What is an Air Distribution Box (ADB)? Functions & Components
The Dometic Air Distribution Box serves as the critical interface between your roof-mounted RV air conditioner and your interior living space. Think of it as the "face" of your cooling system – it's what you see and interact with from inside your RV.
Core Components & Airflow Design
Supply & Return Air Management: The ADB creates a controlled airflow pattern, drawing warm interior air through the return grille (typically with a filter) and distributing cooled air through strategically positioned supply vents. This circulation design ensures even temperature distribution throughout your RV interior.
Filter Integration: Most quality ADBs feature removable/replaceable filters that capture dust, pollen, and debris before air reaches your AC unit's evaporator coil. This protects your expensive rooftop unit while improving indoor air quality.
Control Interface: Depending on your model, the ADB houses either rotary controls (fan speed, temperature) directly on the unit face, or serves as a mounting point for wall-mounted thermostats that provide more precise climate control.
Airflow Direction & Noise Management: Modern ADBs incorporate louver systems and internal baffles that direct airflow efficiently while minimizing operational noise – crucial for comfortable sleeping in your RV.
Compatibility & Fitment Essentials
Standard 14" x 14" Ceiling Opening
The vast majority of RV air distribution boxes are designed for the industry-standard 14" x 14" square ceiling opening. However, always measure your existing opening before ordering, as some older or specialty installations may vary.
Ceiling Thickness Accommodation: Most Dometic ADBs accommodate ceiling thickness ranging from 2" to 4", with adjustable mounting flanges or spacer systems to ensure proper fit across different RV construction types.

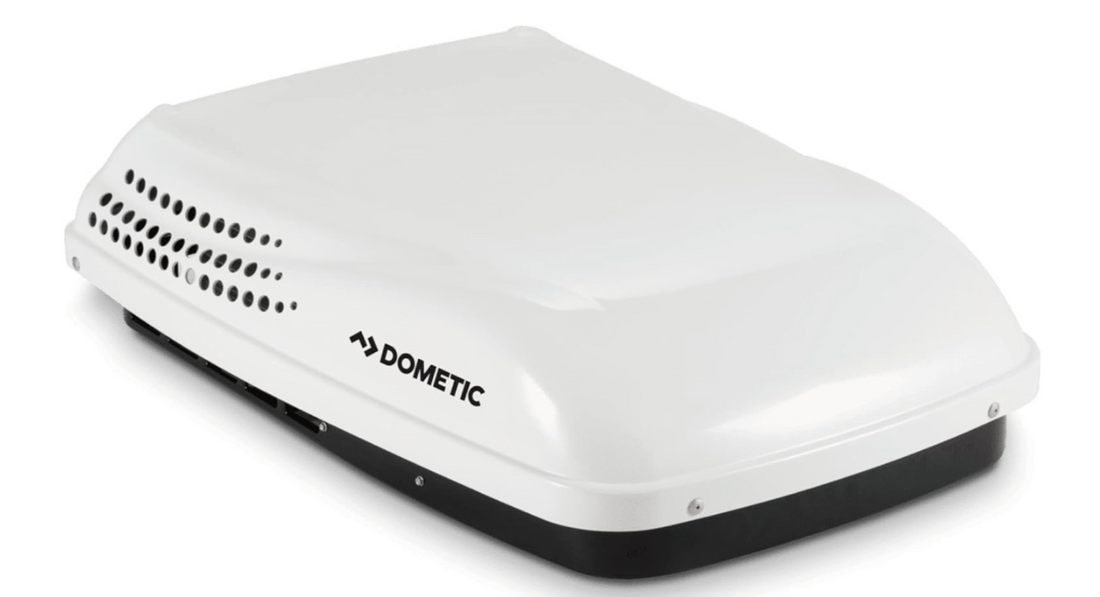

Compatibility with Popular Dometic Roof Units
Brisk II Series Compatibility: The Dometic Brisk II (13.5K and 15K BTU models) pairs seamlessly with most modern ADB units. Key consideration: ensure your ADB supports the CFM rating of your specific Brisk II model.
Penguin II Integration: Penguin II units, known for their low-profile design and quiet operation, work well with ADBs that feature optimized airflow patterns. Look for ADBs specifically noted as "Penguin II compatible" for best performance.
Legacy Unit Considerations: Older Dometic units may require adapter kits or specific ADB models. Always cross-reference your roof unit's model number with ADB compatibility charts.
Ducted vs Non-Ducted Systems: Critical Distinction
Non-Ducted (Direct) Systems: Air flows directly from the roof unit through the ADB into your living space. These systems are simpler to install and maintain, making them popular in smaller RVs and travel trailers.
Ducted Systems: Air is distributed through a network of flexible ducts to multiple vents throughout the RV. ADBs for ducted systems often feature different internal configurations and may include damper controls for zone management.
How to Determine Your System Type: Look at your current installation – if you see flexible ducts connected to your existing ADB, you have a ducted system. If air flows directly down from the unit, you have a non-ducted setup.
ADB Selection: 5 Critical Decision Factors
Control Method: Onboard vs Remote
Rotary Controls (Onboard): Traditional knob-style controls mounted directly on the ADB face. Pros: simple, reliable, no additional wiring. Cons: limited precision, requires reaching the ceiling-mounted unit.
Wall-Mounted Thermostat Compatibility: Modern ADBs can accommodate digital thermostats mounted at convenient locations. Features often include programmable scheduling, precise temperature control, and multi-zone capabilities for ducted systems.
Heat Strip Integration: If your RV uses electric heating strips with your AC unit, ensure your chosen ADB and control system can manage both cooling and heating functions seamlessly.
Airflow Performance & Noise Characteristics
CFM Rating Matching: Your ADB should handle the cubic feet per minute (CFM) rating of your roof unit without creating excessive pressure drop or noise. Undersized ADBs create whistling and reduce efficiency.
Directional Airflow Options: Some ADBs offer adjustable louvers or multiple outlet configurations (4-way, 2-way, or single direction) to customize air distribution for your RV's layout.
Noise Reduction Features: Look for ADBs with internal sound dampening, smooth airflow transitions, and quality bearing systems in adjustable components.
Build Quality & Material Durability
UV-Resistant Materials: Interior components should resist yellowing and cracking from UV exposure through skylights or windows.
Mounting Hardware Strength: Quality ADBs feature robust mounting flanges and hardware that won't loosen with road vibration or thermal cycling.
Filter Accessibility: Easy filter access and replacement without tools encourages regular maintenance, extending your AC system's lifespan.
Installation Complexity & Serviceability
Drop-In Replacement: The best ADB upgrades install using existing mounting points and electrical connections, minimizing installation time and cost.
Maintenance Access: Consider how easily you can access and clean internal components, replace filters, and service control elements.
Component Modularity: Some advanced ADBs allow individual component replacement (control modules, grilles, etc.) rather than full unit replacement for repairs.
Price Categories & Value Proposition
Entry Level ($150-$250): Basic functionality, standard materials, manual controls. Suitable for occasional-use RVs or budget-conscious upgrades.
Mid-Range ($250-$400): Enhanced airflow design, better materials, thermostat compatibility, improved noise dampening. Best value for regular RV users.
Premium ($400-$600+): Advanced features like multi-zone control, smart home integration, premium materials, and comprehensive warranty coverage.
Step-by-Step Installation Guide
Essential Tools & Materials
Required Tools:
- Phillips and flathead screwdrivers (magnetic tips recommended)
- Torque wrench or screwdriver with torque control
- Wire strippers and electrical tape
- Measuring tape and level
- Safety glasses and work gloves
Installation Materials:
- Mounting screws (typically included)
- Sealing gaskets or foam tape
- Wire nuts or terminal blocks
- Cable ties for wire management
- Electrical tester/multimeter
Installation Process
Step 1: Power Isolation & Preparation Disconnect power at the main panel and verify with a tester. Remove the old ADB by carefully disconnecting wiring (photograph connections first) and unscrewing mounting hardware.
Step 2: Opening Inspection & Preparation Clean the ceiling opening thoroughly and inspect for any damage or irregularities. Check that the opening dimensions match your new ADB specifications. Install any required sealing gaskets on the ceiling surface.
Step 3: Test Fitting & Alignment Before making electrical connections, test-fit the new ADB to ensure proper alignment and that mounting holes line up correctly. The unit should sit flush against the ceiling without gaps.
Step 4: Electrical Connections Following your reference photos and the ADB wiring diagram, connect power, control, and any thermostat wires. Use appropriate wire nuts and ensure all connections are secure. If installing a new thermostat, run thermostat cable to the desired wall location.
Step 5: Mechanical Installation Secure the ADB using the provided mounting screws, following the manufacturer's torque specifications (typically 15-20 in-lbs). Over-tightening can crack the housing or ceiling material.
Step 6: System Testing & Adjustment Restore power and test all functions: fan speeds, cooling operation, heating (if equipped), and thermostat operation. Check for proper airflow direction and listen for unusual noises.
Common Installation Mistakes to Avoid
Gasket Omission: Skipping sealing gaskets can lead to air leaks, reduced efficiency, and potential condensation issues.
Over-Torquing: Excessive tightening force can crack plastic components or damage ceiling materials.
Wire Management: Poor wire routing can lead to chafing, interference with moving parts, or difficulty with future service.
Filter Installation: Don't forget to install the return air filter before completing the installation – it's easy to overlook but essential for system protection.
Maintenance & Troubleshooting
Routine Maintenance Schedule
Monthly Filter Inspection: Check return air filters for dirt accumulation, especially during heavy use periods. Clean or replace as needed to maintain optimal airflow and indoor air quality.
Quarterly Comprehensive Check: Inspect mounting hardware for looseness, clean air grilles, and verify proper operation of all controls. Road vibration can gradually loosen connections.
Annual Deep Service: Remove the ADB for thorough cleaning, lubricate any moving parts per manufacturer specifications, and inspect electrical connections for corrosion or wear.
Quick Troubleshooting Guide
Reduced Airflow Issues: Check filter condition first – clogged filters are the most common cause of poor performance. Also verify that return air grilles aren't blocked by furniture or storage items.
Unusual Noises: Rattling often indicates loose mounting hardware. Whistling suggests air leaks around the perimeter seal. Grinding or squealing may indicate bearing issues in adjustable components.
Condensation Problems: Excessive dripping usually indicates installation issues – check that the unit is level and that drain paths aren't blocked. Poor insulation around the installation can also cause condensation.
Control Malfunctions: For thermostat issues, check battery condition first (if applicable), then verify all wiring connections are secure. Manual controls that feel sticky may benefit from cleaning or lubrication.
Complete Purchase Package & Recommendations
Essential Components Bundle
Core ADB Unit: Choose based on your compatibility requirements and feature preferences identified above.
Sealing System: Include proper gaskets, foam tape, or weatherstripping to ensure airtight installation.
Quality Filters: Purchase 2-3 replacement filters to maintain optimal performance and have spares for remote travel.
Performance Enhancement Options
Upgraded Thermostat: Digital programmable thermostats offer superior comfort control and energy efficiency compared to basic rotary controls.
Airflow Accessories: Adjustable louvers, vent extensions, or deflectors can optimize air distribution for your specific RV layout.
Noise Reduction Kit: Sound dampening materials can further reduce operational noise for better sleep quality.
Installation Support: Consider professional installation if you're not comfortable with electrical work or don't have the necessary tools.
Smart Bundle Deals
🎯 Complete Installation Kit: ADB + Gaskets + Filters + Basic Tools - Save 15%
🎯 Performance Package: Premium ADB + Digital Thermostat + Noise Kit - Save 20%
🎯 Professional Setup: Any ADB + Installation + 2-Year Service Plan - Save 25%
Configure My Complete Package →
Frequently Asked Questions
Can I use any ADB with my non-ducted system?
Yes, but ensure the ADB is rated for your roof unit's CFM output and that it's designed for direct (non-ducted) installation. Non-ducted ADBs typically have different internal airflow patterns optimized for direct room distribution rather than duct feeding.
How do I confirm my ceiling opening is standard 14" x 14"?
Measure the interior dimensions of your current ceiling opening. Standard openings measure 14" x 14" interior dimension. If your measurements are significantly different, contact our compatibility team before ordering.
Will my ADB work with wall-mounted controls and electric heat strips?
Most modern ADBs accommodate both wall-mounted thermostats and heat strip control, but verify compatibility with your specific thermostat model and heating system voltage requirements. Some older heat strips may require control upgrades.
Does self-installation void my RV warranty?
Installation of compatible replacement parts typically doesn't void RV warranties, but always check your specific warranty terms. Keep all documentation and photos of the installation process. Professional installation provides additional peace of mind and may include installation warranties.
What about shipping and returns for ADB units?
Due to their size and weight, ADBs require careful packaging for shipping. Most suppliers offer damage protection and reasonable return policies for compatibility issues. Always inspect packages immediately upon delivery and document any shipping damage.
